Aggregat-4 / Vergeltungswaffe-2
Fusée V2
Peenemünde Museum replica of V-2
Type single stage ballistic missile
Place of origin Flag of German Reich (1935–1945) Nazi Germany
Service history
In service 1944–1952
Used by Flag of German Reich (1935–1945) Nazi Germany
Flag of the United Kingdom United Kingdom (post-war)
United States (post-war)
Flag of the Soviet Union Soviet Union (post-war)
Production history
Designer Peenemünde Army Research Center
Manufacturer Mittelwerk GmbH
Unit cost 100,000 RM January 1944, 50,000 RM March 1945[1]
Produced 16 March 1942- 1945 (Germany)
some assembled post war.
Specifications
Mass 12,500 kg (27,600 lb)
Length 14 m (45 ft 11 in)
Diameter 1.65 m (5 ft 5 in)
Warhead 1,000 kg (2,200 lb) Amatol
Detonation
mechanism
impact

Wingspan 3.56 m (11 ft 8 in)
Propellant 3,810 kg (8,400 lb) 75% ethanol/25% water
4,910 kg (10,820 lb) liquid oxygen
Operational
range
320 km (200 mi)
Flight altitude 88 km (55 mi) maximum altitude on long range trajectory,
206 km (128 mi) maximum altitude if launched vertically.
Maximum speed

maximum:5,760 km/h (3,580 mph)

at impact: 2,880 km/h (1,790 mph)
Guidance
system
Gyroscopes to determine direction
Müller-type pendulous gyroscopic accelerometer for engine cutoff on most production rockets[2][3]:225
Launch
platform
Mobile (Meillerwagen)

The V-2 (German language: Vergeltungswaffe 2, "Vengeance Weapon 2"), technical name Aggregat-4 (A4), was a short-range ballistic missile that was developed during the Second World War in Germany, specifically targeted at London and later Antwerp.

Commonly referred to as the V-2 rocket, the liquid-propellant rocket was the world's first long-range[4] combat-ballistic missile[5] and first known human artifact to enter outer space.[6] It was the progenitor of all modern rockets,[7] including those used by the United States and Soviet Union's space programs. During the aftermath of World War II the American, Soviet and British governments all gained access to the V-2's technical designs as well as the actual German scientists responsible for creating the rockets, via Operation Paperclip, Operation Osoaviakhim and Operation Backfire respectively.[8]

The weapon was presented by Nazi propaganda as a retaliation for the bombers that attacked ever more German cities from 1942 until Germany surrendered.[9]

Beginning in September 1944, over 3,000 V-2s were launched as military rockets by the German Wehrmacht against Allied targets during the war, mostly London and later Antwerp and Liège. According to a BBC documentary in 2011, the attacks resulted in the deaths of an estimated 9,000 civilians and military personnel, while 12,000 forced labourers and concentration camp prisoners were killed producing the weapons.[10]

Developmental history[]

In the late 1920s, a young Wernher von Braun acquired a copy of Hermann Oberth's book, Die Rakete zu den Planetenräumen (The Rocket into Interplanetary Spaces).[11] Starting in 1930, he attended the Technical University of Berlin, where he assisted Oberth in liquid-fueled rocket motor tests.[11] Von Braun was working on his creative doctorate when the Nazi Party gained power in Germany.[12] An artillery captain, Walter Dornberger, arranged an Ordnance Department research grant for von Braun, who from then on worked next to Dornberger's existing solid-fuel rocket test site at Kummersdorf.[12] Von Braun's thesis, Construction, Theoretical, and Experimental Solution to the Problem of the Liquid Propellant Rocket (dated 16 April 1934), was kept classified by the German army and was not published until 1960.[13] By the end of 1934, his group had successfully launched two rockets that reached heights of 2.2 and 3.5 km (1.4 and 2.2 mi).[12]

At the time, Germany was highly interested in American physicist Robert H. Goddard's research. Before 1939, German scientists occasionally contacted Goddard directly with technical questions.[12] Von Braun used Goddard's plans from various journals and incorporated them into the building of the Aggregat (A) series of rockets.[12]

Following successes at Kummersdorf with the first two Aggregate series rockets, Wernher von Braun and Walter Riedel began thinking of a much larger rocket in the summer of 1936,[14] based on a projected 25-metric-ton-thrust engine.

Wind channel model of an A4

Wind tunnel model of an A4 in the German Museum of Technology in Berlin

After the A-4 project was postponed due to unfavourable aerodynamic stability testing of the A-3 in July 1936,[15][16] von Braun specified the A-4 performance in 1937,[17] and A-4 design and construction was ordered c1938/1939.[18] During 28–30 September 1939, Der Tag der Weisheit (English: the day of wisdom) conference met at Peenemünde to initiate the funding of university research to solve rocket problems.[14]:40

By late 1941, the Army Research Center at Peenemünde possessed the technologies essential to the success of the A-4. The four key technologies for the A-4 were large liquid-fuel rocket engines, supersonic aerodynamics, gyroscopic guidance and rudders in jet control.[3] At the time, Adolf Hitler was not particularly impressed by the V-2; he pointed out that it was merely an artillery shell with a longer range and much higher cost.[19]

In early September 1943, von Braun promised the Long-Range Bombardment Commission[3]:224 that the A-4 development was "practically complete/concluded",[16]:135 but even by the middle of 1944, a complete A-4 parts list was still unavailable.[3]:224 Hitler was sufficiently impressed by the enthusiasm of its developers, and needed a "wonder weapon" to maintain German morale,[19] so authorized its deployment in large numbers.[20]

The V-2s were constructed at the Mittelwerk site by prisoners from Mittelbau-Dora, a concentration camp where an estimated 20,000 prisoners died during the war.[21][22]

Technical details[]

V-2 rocket diagram (with English labels)

Schematic diagram of a V-2 rocket.

The A-4 used a 75% ethanol/water mixture for fuel and liquid oxygen (LOX) for oxidizer.[23]

At launch the A-4 propelled itself for up to 65 seconds on its own power, and a program motor controlled the pitch to the specified angle at engine shutdown, from which the rocket continued on a ballistic free-fall trajectory. The rocket reached a height of 80 km (50 mi) after shutting off the engine.[24]

The fuel and oxidizer pumps were steam turbines, and the steam was produced by concentrated hydrogen peroxide with sodium permanganate catalyst. Both the alcohol and oxygen tanks were an aluminium-magnesium alloy.[1]

The combustion burner reached a temperature of 2500–2700 °C (4500 – 4900 °F). The alcohol-water fuel was pumped along the double wall of the main combustion burner. This regenerative cooling heated the fuel and cooled the combustion chamber. The fuel was then pumped into the main burner chamber through 1,224 nozzles, which assured the correct mixture of alcohol and oxygen at all times. Small holes also permitted some alcohol to escape directly into the combustion chamber, forming a cooled boundary layer that further protected the wall of the chamber, especially at the throat where the chamber was narrowest. The boundary layer alcohol ignited in contact with the atmosphere, accounting for the long, diffuse exhaust plume. By contrast, later, post-V-2 engine designs not employing this alcohol boundary layer cooling show a translucent plume with shock diamonds.

Antwerp V-2

Vanes at exit of nozzle

The V-2 was guided by four external rudders on the tail fins, and four internal graphite vanes at the exit of the motor. The LEV-3 guidance system consisted of two free gyroscopes (a horizontal and a vertical) for lateral stabilization, and a PIGA accelerometer to control engine cutoff at a specified velocity. The V-2 was launched from a pre-surveyed location, so the distance and azimuth to the target were known. Fin 1 of the missile was aligned to the target azimuth.[25]

Some later V-2s used "guide beams", radio signals transmitted from the ground, to keep the missile on course, but the first models used a simple analog computer that adjusted the azimuth for the rocket, and the flying distance was controlled by the timing of the engine cut-off, "Brennschluss", ground controlled by a Doppler system or by different types of on-board integrating accelerometers. The rocket stopped accelerating and soon reached the top of the approximately parabolic flight curve.

Dr. Friedrich Kirchstein of Siemens of Berlin developed the V-2 radio control for motor-cut-off (German language: Brennschluss).[16]:28,124 For velocity measurement, Professor Wolman of Dresden created an alternative of his Doppler[26]:18 tracking system in 1940–41, which used a ground signal transponded by the A-4 to measure the velocity of the missile.[3]:103 By 9 February 1942, Peenemünde engineer de Beek had documented the radio interference area of a V-2 as 10,000 meters around the "Firing Point",[27] and the first successful A-4 flight on 3 October 1943, used radio control for Brennschluss.[15]:12 Although Hitler commented on 22 September 1943, that "It is a great load off our minds that we have dispensed with the radio guiding-beam; now no opening remains for the British to interfere technically with the missile in flight",[16]:138 about 20% of the operational V-2 launches were beam-guided.[15]:12 The Operation Pinguin V-2 offensive began on 8 September 1944, when Lehr- und Versuchsbatterie No. 444[26]:51–2 (English: Training and Testing Battery 444) launched a single rocket guided by a radio beam directed at Paris.[27]:47 Wreckage of combat V-2s occasionally contained the transponder for velocity and fuel cutoff.[14]:259–60

The painting of the operational V-2s was mostly a camouflage ragged pattern with several variations, but at the end of the war a plain olive green rocket also appeared. During tests, the rocket was painted in a characteristic black-and-white chessboard pattern, which aided in determining if the rocket was spinning around its longitudinal axis.

Esquema de la V-2

A U.S. Army cut-away of the V-2.

The original German designation of the rocket was "V2", unhyphenated, but U.S. publications such as Life magazine were using the hyphenated form "V-2" as early as December 1944.[28] This hyphenated form has now become common usage.

Testing[]

The first successful test flight was on 3 October 1942:

This third day of October, 1942, is the first of a new era in transportation, that of space travel...

— Speech at Peenemünde, Walter Dornberger, 3 October 1942[15]17

Rocket engine A4 V2

Engine cut-away – 1, Deutsches Museum, Munich

Two test launches were recovered by the Allies: the Bäckebo rocket which landed in Sweden on 13 June 1944 and one recovered by the Polish resistance on 30 May 1944[29] from Blizna and transported to the UK during Operation Most III.

Test launches of V-2 rockets (Aggregate-4) were made at Peenemünde, Blizna and Tuchola Forest, and after the war, at Cuxhaven by the British, White Sands Proving Grounds, Cape Canaveral and Kapustin Yar.

Various design issues were identified and solved during V-2 development and testing:

  • To reduce tank pressure and weight, high flow turbopumps were used to boost pressure.[3]:35
  • A short and lighter combustion chamber without burn-through was developed by using centrifugal injection nozzles, a mixing compartment, and a converging nozzle to the throat for homogeneous combustion.[15]:51
  • Film cooling was used to prevent burn through at the nozzle throat.[15]:52
  • Relay contacts were made more durable to withstand vibration and prevent thrust cutoff just after lift-off.[15]:52
  • Ensuring that the fuel pipes had tension-free curves reduced the likelihood of explosions at 1,200–1,800 m (4,000–6,000 ft).[15]:215,217
  • Fins were shaped with clearance to prevent damage as the exhaust jet expanded with altitude.[15]:56,118
  • To control trajectory at liftoff and supersonic speeds, heat-resistant graphite vanes were used as rudders in the exhaust jet.[15]:35,58

Airburst problem[]

Through mid-March 1944, only 4 of the 26 successful Blizna launches had satisfactorily reached the Sarnaki target area[27]:112, 221–222, 282 due to in-flight breakup (Luftzerleger) on entry into the atmosphere.[30]:100 Initially, excessive alcohol tank pressure was suspected, but by April 1944 after 5 months of test firings, the cause was still not determined. Major-General Rossmann, the Army Weapons Office department chief, recommended stationing observers in the target area – c. May/June, Dornberger and von Braun set up a camp at the centre of the Poland target zone.[3]: After moving to the Heidekraut,[14]:172,173 SS Mortar Battery 500 of the 836th Artillery Battalion (Motorized) was ordered[27]:47 on 30 August[26] to begin test launches of eighty 'sleeved' rockets.[16]:281 Testing confirmed that the so-called 'tin trousers' – a tube designed to strengthen the forward end of the rocket cladding—reduced the likelihood of airbursts.[30]:100

Production[]

Peenemunde-165515

23 June 1943 RAF reconnaissance photo of V-2s at Test Stand VII

A production line was nearly ready at Peenemünde when the Operation Hydra attack caused the Germans to move production to the Mittelwerk in the Kohnstein where 5,200 V-2 rockets were built.[31]

Period of Production Production[citation needed]
Up to 15 Sep 1944 1900
15 Sep to 29 Oct 1944 900
29 Oct to 24 Nov 1944 600
24 Nov to 15 Jan 1945 1100
15 Jan to 15 Feb 1945 700
Total 5200

Launch sites[]

Bundesarchiv Bild 141-1880, Peenemünde, Start einer V2

A V-2 launched from a fixed site in summer 1943

Following Operation Crossbow bombing, initial plans for launching from the massive underground Watten and Wizernes bunkers or from fixed pads such as near the Chateau du Molay[32] were dropped in favour of mobile launching. Eight main storage dumps were planned and four had been completed by July 1944 (the one at Mery-sur-Oise was begun in August 1943 and completed by February 1944).[33] The missile could be launched practically anywhere, roads running through forests being a particular favourite. The system was so mobile and small that only one Meillerwagen was ever caught in action by Allied aircraft, during the Operation Bodenplatte attack on January 1, 1945[34] near Lochem by a USAAF 4th Fighter Group aircraft, although Raymond Baxter described flying over a site during a launch and his wingman firing at the missile without hitting it.

It was estimated that a sustained rate of 350 V-2s could be launched per week, with 100 per day at maximum effort, given sufficient supply of the rockets.[35]

Operational history[]

After Hitler's 29 August 1944 declaration to begin V-2 attacks as soon as possible, the offensive began on 8 September 1944 with a single launch at Paris, which caused modest damage near Porte d'Italie,.[14]:218,220,467 Two more launches by the 485th followed, including one from The Hague against London on the same day at 6:43 p.m.[16]:285 – the first landed at Chiswick, killing 63-year-old Mrs. Ada Harrison, 3-year-old Rosemary Clarke, and Sapper Bernard Browning on leave from the Royal Engineers.[17]:11 Upon hearing the double-crack of the supersonic rocket (London's first-ever), Duncan Sandys and Reginald Victor Jones looked up from different parts of the city and exclaimed "That was a rocket!", and a short while after the double-crack, the sky was filled with the sound of a heavy body rushing through the air.[16]:286

As the V2 explosions came without warning, the British government initially attempted to conceal their cause by blaming them on defective gas mains. However, the public was not fooled and soon began sardonically referring to the V-2's as "flying gas pipes".[36] The Germans themselves finally announced the V-2 on 8 November 1944 and only then, on 10 November 1944, did Winston Churchill inform Parliament, and the world, that England had been under rocket attack "for the last few weeks".[citation needed]

Positions of the German launch units did change a number of times. For example Artillerie Init 444 arrived in the southwest Netherlands (in Zeeland) in September 1944. From a field near the village of Serooskerke, five V-2s were launched on 15 and 16 September, with one more successful and one failed launch on the 18th. That same date, a transport carrying a missile took a wrong turn and ended up in Serooskerke itself, giving a villager the opportunity to surreptitiously take some photographs of the weapon; these were smuggled to London by the Dutch Resistance.[37] After that the unit moved to Gaasterland in the northwest Netherlands, to make sure that the technology did not fall into Allied hands. From Gaasterland V-2s were launched against Ipswich and Norwich from 25 September (London being out of range). Because of their inaccuracy, these V-2s did not hit their target cities. Shortly after that only London and Antwerp remained as designated targets as ordered by Adolf Hitler himself, Antwerp being targeted in the period of 12 to 20 October, after which time the unit moved to The Hague.

Damage Caused by V2 Rocket Attacks in Britain, 1945 HU88803

Aftermath of a V-2 bombing at Limehouse, London, 27 March 1945.

Over the next few months the number of V-2s fired was at least 3,172, distributed over the various targets as follows:

Belgium, 1664: Antwerp (1610), Liège (27), Hasselt (13), Tournai (9), Mons (3), Diest (2)
United Kingdom, 1402: London (1358), Norwich (43),[16]p289 Ipswich (1)
France, 76: Lille (25), Paris (22), Tourcoing (19), Arras (6), Cambrai (4)
Netherlands, 19: Maastricht (19)
Germany, 11: Remagen (11)

An estimated 2,754 civilians were killed in London by V-2 attacks with another 6,523 injured,[38] which is two people killed per V-2 rocket. However, this understates the potential of the V-2, since many rockets were misdirected and exploded harmlessly. Accuracy increased over the course of the war, particularly on batteries where Leitstrahl-Guide Beam apparatus was installed.[39] Missile strikes were often devastating, causing large numbers of deaths—160 killed and 108 seriously injured in one explosion on 25 November 1944 in mid-afternoon, striking a Woolworth's department store in New Cross, south-east London.

After these deadly results, British intelligence leaked falsified information implying that the rockets were over-shooting their London target by 10 to 20 miles (16 to 32 km). This tactic worked and for the remainder of the war; most landed on less-heavily populated areas in Kent due to erroneous recalibration.[40]

The final two rockets exploded on 27 March 1945. One of these was the last V-2 to kill a British civilian: Mrs. Ivy Millichamp, aged 34, killed in her home in Kynaston Road, Orpington in Kent.[41]

Antwerp, Belgium was also the target for a large number of V-weapon attacks from October 1944 through March 1945, leaving 1,736 dead and 4,500 injured in greater Antwerp. Thousands of buildings were damaged or destroyed as the city was struck by 590 direct hits. The largest loss of life in a single attack came on 16 December 1944, when the roof of a crowded cinema was struck, leaving 567 dead and 291 injured.[42]

A scientific reconstruction carried out in 2010 demonstrated that the V-2 creates a crater 20 m wide and 8 m deep, ejecting approximately 3,000 tons of material into the air.[40]

Countermeasures[]

Unlike the V-1, the V-2's speed and trajectory made it practically invulnerable to anti-aircraft guns and fighters, as it dropped from an altitude of 100–110 km (62–68 mi) at up to four times the speed of sound (approximately 3550 km/h). A plan was proposed whereby the missile would be detected by radar, its terminal trajectory calculated, and the area along that trajectory saturated by large-caliber anti-aircraft guns. The plan was dropped after operations research indicated that the likely number of malfunctioning artillery shells falling to the ground would do more damage than the V-2 itself.[43]

The defence against the V-2 campaign was to destroy the launch infrastructure—expensive in terms of bomber resources and casualties—or to cause the Germans to aim at the wrong place through disinformation. The British were able to convince the Germans to direct V-1s and V-2s aimed at London to less populated areas east of the city. This was done by sending deceptive reports on the damage caused and sites hit via the German espionage network in Britain, which was controlled by the British (the Double-Cross System).

There is a record of one V-2, fortuitously observed at launch from a passing American Consolidated B-24 Liberator, being shot down by .50-inch (12.7 mm) machine-gun fire.[44]

Ultimately the most successful countermeasure was the Allied advance that forced the launchers back beyond range.

On 3 March 1945 the Allies attempted to destroy V-2s and launching equipment in the "Haagse Bos" in The Hague by a large-scale bombardment, but due to navigational errors the Bezuidenhout quarter was destroyed, killing 511 Dutch civilians.

Assessment[]

The German V-weapons (V-1 and V-2) cost $3 billion (wartime dollars) and was more costly than the Manhattan Project that produced the atomic bomb ($1.9 billion).[14]:178 6,048 V-2s were built, at a cost of approximately 100,000 Reichsmarks (GB£2,370,000 (2011)) each; 3,225 were launched. SS General Hans Kammler, who as an engineer had constructed several concentration camps including Auschwitz, had a reputation for brutality and had originated the idea of using concentration camp prisoners as slave laborers in the rocket program. The V-2 is perhaps the only weapon system to have caused more deaths by its production than its deployment.[45]

"… those of us who were seriously engaged in the war were very grateful to Wernher von Braun. We knew that each V-2 cost as much to produce as a high-performance fighter airplane. We knew that German forces on the fighting fronts were in desperate need of airplanes, and that the V-2 rockets were doing us no military damage. From our point of view, the V-2 program was almost as good as if Hitler had adopted a policy of unilateral disarmament." (Freeman Dyson)[46]

The V-2 consumed a third of Germany's fuel alcohol production and major portions of other critical technologies:[47] to distil the fuel alcohol for one V-2 launch required 30 tonnes of potatoes at a time when food was becoming scarce.[48] Due to a lack of explosives, concrete was used and sometimes the warhead contained photographic propaganda of German citizens who had died in Allied bombing.[19]

The V-2 lacked a proximity fuse, so it could not be set for air burst; it buried itself in the target area before or just as the warhead detonated. This reduced its effectiveness. Furthermore, its early guidance systems were too primitive to hit specific targets and its costs were approximately equivalent to four-engined bombers, which were more accurate (though only in a relative sense), had longer ranges, carried many more warheads, and were reusable. Moreover, it diverted resources from other, more effective programs. That said, the limiting factor for German aviation after 1941 was always the availability of high test aviation gas (not planes or pilots), so criticisms of the V-1 and V-2 programs that compare their cost to hypothetical increases in fighter or bomber production are misguided. Nevertheless, the weapon had a considerable psychological effect because, unlike bombing planes or the V-1 Flying Bomb (which made a characteristic buzzing sound), the V-2 travelled faster than the speed of sound, with no warning before impact, no possibility of defence and there was no risk of attacking pilot and crew casualties.

With the war all but lost, regardless of the factory output of conventional weapons, the Nazis resorted to V-weapons as a tenuous last hope to influence the war militarily (hence Antwerp as V-2 target), as an extension of their desire to "punish" their foes and most importantly to give hope to their supporters with their miracle weapon.[19] The V-2 had no effect on the outcome of the war, but its value, despite its overall ineffectiveness, was in its novelty as a weapon which set the stage for the next 50 years of ballistic military rocketry, culminating with ICBMs during the Cold War and modern space exploration.

Unfulfilled plans[]

A submarine-towed launch platform was tested successfully, making it the prototype for submarine-launched ballistic missiles. The project codename was Prüfstand XII ("Test stand XII"), sometimes called the rocket U-boat. If deployed, it would have allowed a U-boat to launch V-2 missiles against United States cities, though only with considerable effort (and limited effect).[49] Hitler, in July 1944 and Speer, in January 1945, made speeches alluding to the scheme,[50] though Germany did not possess any capability to fulfill these threats. These schemes were met by the Americans with Operation Teardrop.

While interned after the war by the British at CSDIC camp 11, Dornberger was recorded saying that he had begged the Führer to stop the V-weapon propaganda, because nothing more could be expected from one ton of explosive. To this Hitler had replied that Dornberger might not expect more, but he (Hitler) certainly did.

According to decrypted messages from the Japanese embassy in Germany, twelve dismantled V-2 rockets were shipped to Japan.[51] These left Bordeaux in August 1944 on the transport U-boats U-219 and U-195, which reached Djakarta in December 1944. A civilian V-2 expert was a passenger on U-234, bound for Japan in May 1945 when the war ended in Europe. The fate of these V-2 rockets is unknown.

Postwar use[]

At the end of the war, a race began between the United States and the USSR to retrieve as many V-2 rockets and staff as possible.[52] Three hundred rail-car loads of V-2s and parts were captured and shipped to the United States and 126 of the principal designers, including Wernher von Braun and Walter Dornberger, were in American hands. Von Braun, his brother Magnus von Braun, and seven others decided to surrender to the United States military (Operation Paperclip) to ensure they were not captured by the advancing Soviets or shot dead by the Nazis to prevent their capture.[53]

Britain

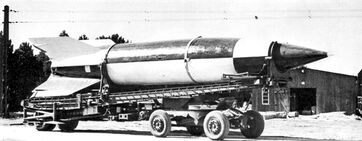

V-2 Rocket On Meillerwagen

Operation Backfire (WWII) V-2 rocket on Meillerwagen (S.I. Negative #76-2755)

In October 1945, British Operation Backfire assembled a small number of V-2 missiles and launched three of them from a site in northern Germany. The engineers involved had already agreed to move to the US when the test firings were complete. The Backfire report remains the most extensive technical documentation of the rocket, including all support procedures, tailored vehicles and fuel composition.[citation needed]

Post-war V-2s launched in secret from Peenemünde may have been responsible for a curious phenomenon known as ghost rockets, unexplained objects crossing the skies over Sweden and Finland.[citation needed]

Canada

In his book My Father's Son, Canadian author Farley Mowat, then a member of the Canadian Army, claims to have obtained a V-2 rocket in 1945 and shipped it back to Canada, where it is alleged to have ended up in the National Exhibition grounds in Toronto. There was a V-2 stored outside at RCAF Station Picton, Ontario in June 1961.[citation needed]

The Canadian Arrow, a competitor for the Ansari X Prize, was based on the aerodynamic design of the V-2.

United States
Bumper8 launch-GPN-2000-000613

US test launch of a Bumper V-2.

Operation Paperclip recruited German engineers and Special Mission V-2 transported the captured V-2 parts to the United States. At the close of the Second World War, over 300 rail cars filled with V-2 engines, fuselages, propellant tanks, gyroscopes, and associated equipment were brought to the railyards in Las Cruces, New Mexico, so they could be placed on trucks and driven to the White Sands Proving Grounds, also in New Mexico.

In addition to V-2 hardware, the U.S. Government delivered German mechanization equations for the V-2 guidance, navigation, and control systems, as well as for advanced development concept vehicles, to U.S. defense contractors for analysis. In the 1950s some of these documents were useful to U.S. contractors in developing direction cosine matrix transformations and other inertial navigation architecture concepts that were applied to early U.S. programs such as the Atlas and Minuteman guidance systems as well as the Navy's Subs Inertial Navigation System.[citation needed]

A committee was formed with military and civilian scientists, to review payload proposals for the reassembled V-2 rockets.[54] This led to an eclectic array of experiments that flew on V-2s and paved the way for American manned space exploration. Devices were sent aloft to sample the air at all levels to determine atmospheric pressures and to see what gases were present. Other instruments measured the level of cosmic radiation.

First photo from space

The first photo from space was taken from a V-2 launched by US scientists on 24 October 1946.

Only 68 percent of the V-2 trials were considered successful.[citation needed] A supposed V-2 launched on 29 May 1947 landed near Juarez, Mexico and was actually a Hermes B-1 vehicle.[55]

The U.S. Navy attempted to launch a German V-2 rocket at sea—one test launch from the aircraft carrier USS Midway was performed on 6 September 1947 as part of the Navy's Operation Sandy. The test launch was a partial success; the V-2 went off the pad but splashed down in the ocean only some 10 km (6 mi) from the carrier. The launch setup on the Midway's deck is notable in that it used foldaway arms to prevent the missile from falling over. The arms pulled away just after the engine ignited, releasing the missile. The setup may look similar to the R-7 launch procedure but in the case of the R-7 the trusses hold the full weight of the rocket, rather than just reacting to side forces.

The PGM-11 Redstone rocket is a direct descendant of the V-2.[56]

USSR

The USSR also captured a number of V-2s and staff, letting them set up in Germany for a time. The first work contracts were signed in the middle of 1945. In 1946 (as part of Operation Osoaviakhim) they were obliged to move to Kapustin Yar in the USSR, where Gröttrup headed up a group of just under 250 engineers. The first Soviet missile was the R-1, a duplicate of the V-2. Most of the German team was sent home after that project but some remained to do research until as late as 1951. Unbeknownst to the Germans, work immediately began on larger missiles, the R-2 and R-5, based on extension of the V-2 technology.[citation needed]

In popular culture[]

  • Thomas Pynchon makes the V-2 rocket the central point of his postmodern novel Gravity's Rainbow.
  • The MGM movie Operation Crossbow dramatises Allied efforts to impede the V-1 and V-2 programmes.
  • Hergé's The Adventures of Tintin comic "Destination Moon" (Objectif Lune), first published in 1950, depicts a moon rocket marginally resembling the V2 rocket, though much larger and with very different fins.
  • In Command and Conquer: Red Alert, which takes place in an alternate time period, the Soviet red army uses V2 rockets that are launched via trucks against Allied nations.
  • In the game Medal of Honor, the player has to sabotage and launch a V2 rocket in the last mission.
