The Sukhoi Su-33 Sea Flanker (Flanker-D) is the naval version of the Sukhoi Su-27 Flanker, made specifically to the Russian Navy's needs to operate on the Admiral Kuznetsov Aircraft Carrier. The main differences between the Su-33 and the Su-27 is that the Su-33 is made for operation on aircraft carriers and has the capability of aerial refueling, capabilities that it's land-based counterpart, the Su-27, does not have.

Description[]

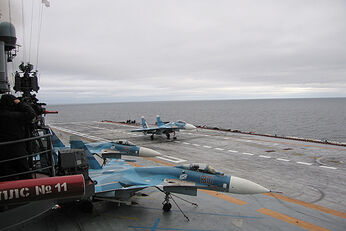

Su-33s on board Admiral Kuznetsov

The Su-33 Sea Flanker is a fighter for exclusive use on the Admiral Kuznetsov Aircraft Carrier, manufactured by Sukhoi. This is the first version for aircraft carriers of the famous Su-27, which is built on the same platform (unit construction) of the Su-27, and tested the subsequent electronics of the Sukhoi Su-30; front wings were installed ("Canards") to improve control at low speeds and is a fighter jet, deployed on horizontal take-off aircraft carriers, which replaced the board aircraft project Yakovlev Yak-38 and the more modern Yakovlev Yak-141 vertical take-off, by the superior flight performance, load capacity and speed offered by the Su-33.

Specifications[]

General Characteristics[]

  • Crew: 1
  • Length: 21.94 m (72 ft)
  • Wingspan: 14.70 m (48.25 ft)
  • Height: 5.93 m (19.5 ft)
  • Wing area: 62.0 m² (667 ft²)
  • Empty weight: 18,400 kg (40,600 lb)
  • Loaded weight: 29,940 kg (66,010 lb)
  • Max takeoff weight: 33,000 kg (72,750 lb)
  • Powerplant: 2× AL-31F afterburning turbofans
    • Dry thrust: 7,600 kgf (74.5 kN, 16,750 lbf) each
    • Thrust with afterburner: 12,500 kgf (122.6 kN, 27,560 lbf) each
  • Wingspan, wings folded: 7.40 m (24.25 ft)

Performance[]

  • Maximum speed: Mach 2.17 (2,300 km/h, 1,430 mph) at 10,000 m (33,000 ft) altitude
  • Stall speed: 240 km/h (150 mp/h)
  • Range: 3,000 km (1,860 mi)
  • Service ceiling: 17,000 m (55,800 ft)
  • Rate of climb: 325 m/s (64,350 ft/min)
  • Wing loading: 483 kg/m²; (98.9 lb/ft²)
  • Thrust/weight: 0.83
  • Maximum turn: +8 g (+78 m/s²)
  • Landing speed: 235–250 km/h (145-155 mph)

Armament[]

  • 1 × 30 mm GSh-30-1 cannon, 150 rounds
  • Up to 6,500 kg (14,300 lb) of munitions on twelve external hardpoints, including:
    • 4 × Vympel R-27 and 4 × R-73 air-to-air missiles
    • Various bombs, cluster bombs and rockets
    • ECM pods

See also[]
