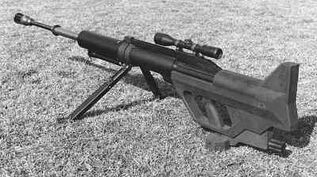

The Steyr IWS 2000 is an Austrian anti-material rifle created by the

Steyr IWS 2000

Steyr Manlicher to kill helicopters and light armored vehicles. The most interesting of this rifle is his ammunition, that is almost four times bigger than the .308 Winchester.

Description

The development of this interesting weapon began in mid-1980s, when Austrian company Steyr-Manlicher AG decided to develop a long-range anti-materiel rifle (AMR) - a modern equivalent of the WWII-era antitank rifles. Main targets for AMR are light armored vehicles, helicopters, installations such as radar cabins, missile launchers, fuel tanks etc. To achieve desired effective range of at least 1000 meters, Steyr engineers first decided to use APDS (armor piercing, discarding sabot), or sub-caliber, ammunition. Development started from 12.7mm cartridges, and later Steyr developed a 14.5mm APFSDS (Armor percing, fin stabilised, discarding sabot) ammunition in 14.5mm caliber and built few prototypes with smooth bores and semi-automatic actions, called Steyr AMR 5075. Further development led to even bigger caliber of 15.2mm fith same ultra-high velocity APFSDS projectiles. This system is called Steyr IWS 2000 (Infantry Weapon System 2000) and currently is probably in Advanced Development status or ready for adoption.

IWS 2000 is a very formidable weapon. It fires 20 gram (308 grains) tungsten dart (fleschette) with muzzle velocity of 1450 meters per second (4750 fps). At 1000 meters this projectile will penetrate a 40 mm of RHA (rolled homogenous steel armor) and will result in serious secondary fragmentation effect behind the armor. That said, it will penetrate two walls of any modern APC at one kilometer range. The trajectory is very flat and does not rise higher than 800 mm above the line of sight when fired to 1000 meters. The cartridge is of somewhat original design, and has plastic case with steel head and base. The projectile is concealed within a plastic sabot.

The rifle itself also is very interesting. First, it uses rare long-recoil system, when barrel recoils along with the bolt for significant

Steyr 15.2mm cartridge compared to 7.62mm NATO (.308 Wichester) cartridge

lenght. At the end of the recoil, bolt unlocks from the barrel by rotating and held back, and barrel returns into forward position, ejecting a spent case. Bolt stays at the rearmost position while barrel moves, and then also moves forward, chambering a new round from the side-mounted magazine and finally locking rigidly to the barrel. This design allows for better recoil disttibution over a longer period of time. Huge muzzle brake also contributes to recoil control, so felt recoil of the IWS 2000 is described as a similar to the large-caliber sporting rifle. Five round detachable box magazine is located at the right side of the receiver and inclined down for about 45 degrees. The smooth-bore barrel can be easily detached, so rifle can be carried disassembled into two man-portable packs. Plastics are used where possible to reduce the weight of the gun. IWS 2000 is equipped with bipod and a rear leg under the buttstock. It is also equipped with 10X telescope as a standard.

This is probably the most powerful modern anti-materiel rifle, and while it is not a true "sniper" rifle, it is well worth mentioning. The future of this design is also unclear, sice it requires ammunition of a brand new type.

Specifications

  • Caliber(s): 15.2mm Steyr APFSDS
  • Operation: long recoil, semi-automatic
  • Barrel: 1200 mm
  • Weight: 18 kg
  • Length: 1800 mm
  • Feed Mechanism: 5 rounds detachable box mag.
