YF-17 "Cobra"
Northrop YF-17
YF-17 in 1976 during a demonstration flight
Role Prototype fighter aircraft
Manufacturer Northrop
First flight 9 June 1974
Status Developed as F/A-18 Hornet
Primary user United States Air Force (intended)
Number built 2
Developed into McDonnell Douglas F/A-18 Hornet

The Northrop YF-17 (nicknamed "Cobra") was a prototype lightweight fighter aircraft designed for the United States Air Force's Lightweight Fighter (LWF) technology evaluation program. The LWF was initiated because many in the fighter community believed that aircraft like the F-15 Eagle were too large and expensive for many combat roles. The YF-17 was the culmination of a long line of Northrop designs, beginning with the N-102 Fang in 1956, continuing through the F-5 family.

Although it lost the LWF competition to the F-16 Fighting Falcon, the YF-17 was selected for the new Naval Fighter Attack Experimental (VFAX) program. In enlarged form, the F/A-18 Hornet was adopted by the United States Navy and United States Marine Corps to replace the A-7 Corsair II and F-4 Phantom II, complementing the more expensive F-14 Tomcat.[1] This design, conceived as a small and lightweight fighter, was scaled up to the Boeing F/A-18E/F Super Hornet, which is similar in size to the original F-15.

Design and development[]

The aircraft's main design elements date to early 1965, from the internal Northrop project N-300. The N-300 was itself derived from the F-5E, and features a longer fuselage, small leading-edge root extensions (LERX), and more powerful GE15-J1A1 turbojets, rated at 9,000 lbf (40 kN) each. The wing was slightly elevated to increase ordnance flexibility. The N-300 further evolved into the P-530 Cobra, which uses 13,000 lbf (58 kN) GE15-J1A5 engines, with a very small .25 bypass ratio leading to the nickname "leaky turbojet". The bypass effectively was only a cooling stream for the rear of the engine, allowing the engine bay to be constructed of lighter, cheaper materials.[1]

The P-530's wing planform and nose section was similar to the F-5, with a trapezoidal shape formed by a sweep of 20° at the quarter-chord line, and an unswept trailing edge, but was over double the area, with 400 sq ft (37 m2) as opposed to 186 sq ft (17.3 m2) of the F-5E. Initially shoulder mounted, the wings were gradually shifted down to the mid position. Its most distinctive new feature were the LERXs that tapered into the fuselage under the cockpit. They enabled maneuvering at angles of attack exceeding 50°, by providing about 50% additional lift. The extensions also trapped airflow under them at high angles of attack, ensuring airflow into the engines. The resemblance to the head of a cobra lead to the adoption of the nickname "Cobra", often unofficially used for the YF-17.[2]

Jet fighter over-flying desert. The jet has black nose and two outward-canted vertical stabilizers between which lay two engines.

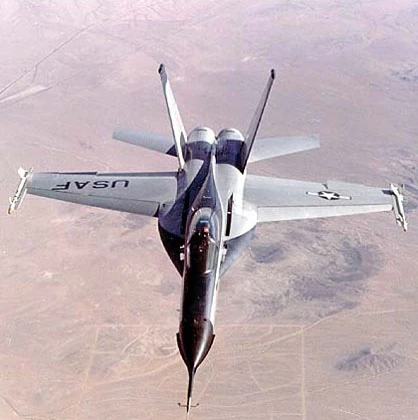

Frontal view of Northrop YF-17

The YF-17 was primarily constructed of aluminum, in conventional semi-monocoque stressed-skin construction, though over 900 lb (408 kg) of its structure were graphite/epoxy composite. The small nose contained a simple ranging radar. The cockpit sported an ejection seat inclined at 18°, a bubble canopy, and a head-up display (HUD). The thin wings carried no fuel, and in areas such as the leading and trailing edge and the LERX, were composed of a Nomex honeycomb core with composite facesheets. The rear of the aircraft featured twin all-moving stabilators of aluminum over a honeycomb core, and twin vertical stabilizers of a conventional construction. Like the wings, the leading and trailing edges were constructed of composite facesheets over honeycomb core. A composite speedbrake was located above and between the engines.[3]

The aircraft was powered by a pair of 14,400-pound-force (64 kN) General Electric YJ101-GE-100 turbofans, a development of the GE15, mounted next to each other to minimize thrust asymmetry in the event of an engine loss. For ease of maintenance, the engines are mounted in a steady-rest that allows removal from below the aircraft, without disturbing the empennage controls. Each engine drove an independent hydraulic system. Unlike the P-530, the YF-17 sported a partial fly-by-wire control scheme, formally called the electronic control augmentation system (ECAS), utilizing ailerons, rudders, and stabilators for primary flight control.[3]

Studies showed a single vertical stabilizer was insufficient at high angles of attack, and it was changed to twin vertical stabilizers, canted at 45°, resulting in a "relaxed longitudinal stability" design, which enhances maneuverability. Northrop was not yet confident in fly-by-wire controls and retained mechanically-signaled flight controls. The resulting aircraft, unveiled on 28 January 1971, advertised a maximum weight of 40,000 lb (18,144 kg) and maximum speed of Mach 2, but stirred little interest among foreign buyers.[2]

Lightweight Fighter program[]

Two jet aircraft flying together over mountain range and cloud.

An air-to-air right side view of a YF-16 aircraft and a YF-17 aircraft, side-by-side, armed with AIM-9 Sidewinder missiles

When the Lightweight Fighter program was announced in 1971, Northrop modified the P-530 into the P-600 design that would be designated the YF-17A. Whereas the P-530 was intended as a multi-role aircraft, the P-600 was to be strictly an air-to-air demonstrator, and consequently the cannon moved from the underside of the fuselage, to the upper part. Design of the YF-17 and the prototype YJ101 engine (a development of the GE15 engine), consumed over a million man-hours, and 5,000 hours of wind tunnel testing.

The first prototype (serial number 72-1569) was rolled out at Hawthorne on 4 April 1974; its first flight at Edwards AFB came on 9 June with Henry "Hank" Chouteau at the controls [4] flying for 61 minutes reaching an altitude of 19,000 feet and a maximum speed of 610 miles per hour.[citation needed] The second YF-17 (s/n 72-1570) first flew on 21 August.[4] Through 1974, the YF-17 competed against the General Dynamics YF-16. The two YF-17 prototypes flew 288 test flights, totaling 345.5 hours.[4] The YF-17 attained a top speed of Mach 1.95, a peak load factor of 9.4 g, and a maximum altitude of over 50,000 ft (15,000 m). It could attain a sustained 34° angle of attack in level flight, and 63° in a climb at 50 kt (58 mph, 93 km/h).

Naval Fighter Attack Experimental[]

Initially, the U.S. Navy was not heavily involved as a participant in the LWF program. In August 1974, Congress directed the Navy to make maximum use of the technology and hardware of the LWF for its new lightweight strike fighter, the VFAX.[5] As neither contractor had experience with naval fighters, they sought partners to provide that expertise. General Dynamics teamed with LTV Aerospace for the F-16N; Northrop with McDonnell Douglas for the F-18. Each submitted revised designs in line with the Navy needs for a long-range radar and multirole capabilities.[6]

Flight testing[]

Prototype YF-17 72-1569 was sent to NASA's Dryden Research Center for base drag studies from 27 May to 14 July 1976 prior to the first F/A-18 prototype under development.[7]

Aircraft on display[]

YF-17

Specifications (YF-17A)[]

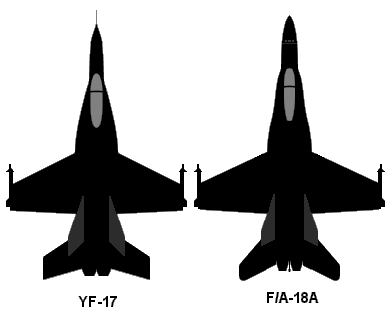

Diagram showing planform views of two jet aircraft, showing any differences between the two.

Size and physical comparison between YF-17 and F/A-18

General characteristics

  • Crew: 1
  • Length: 56 ft 0 in (17.0 m)
  • Wingspan: 35 ft 0 in (10.5 m)
  • Height: 16 ft 6 in (5.0 m)
  • Wing area: 350 ft² (32 m²)
  • Empty weight: 17,180 lb (7,800 kg)
  • Loaded weight: 23,000 lb (10,430 kg)
  • Max. takeoff weight: 34,280 lb (15,580 kg)
  • Powerplant: 2 × General Electric YJ101-100 afterburning turbofans, 14,400 lbf (67 kN) each

Performance

  • Maximum speed: Mach 1.95
  • Range: 2,990 mi (4,810 km)
  • Service ceiling: 50,000 ft (15,000 m)
  • Rate of climb: 50,000 ft/min (250 m/s)
  • Wing loading: 66 lb/ft² (320 kg/m²)
  • Thrust/weight: 1.25

Armament

See also[]

References[]

Notes
  1. 1.0 1.1 Jenkins, Dennis R. F/A-18 Hornet: A Navy Success Story. New York: McGraw-Hill, 2000. ISBN 0-07-140037-0.
  2. 2.0 2.1 Baugher, Joe. "Northrop YF-17 Cobra", 20 July 2009. Retrieved: 4 August 2010.
  3. 3.0 3.1 Winchester 2005. p. 191.
  4. 4.0 4.1 4.2 Jenkins and Landis 2008, p. 228.
  5. Miller 1986, p. 5.
  6. Wooldridge, E.T., ed. with John S. McCain. Into the Jet Age: Conflict and Change in Naval Aviation, 1945–1975: An Oral History. Annapolis, Maryland: Naval Institute Press, 1995. ISBN 1-55750-932-8.
  7. "YF-17 Cobra Photo Collection." NASA Dryden Photo Collection. Retrieved: 4 August 2010.
