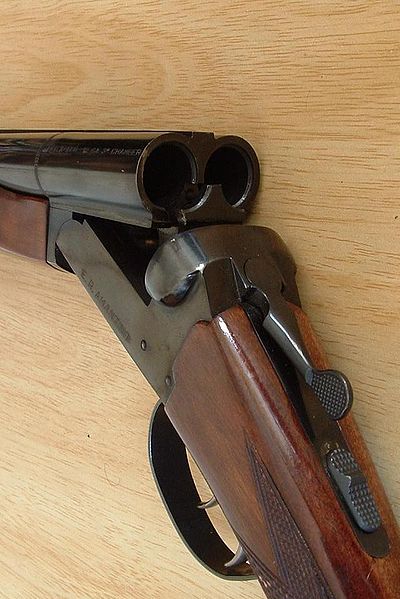

A view of the break-action of a typical double-barrelled shotgun, with the action open and the extractor visible. The opening lever and the safety catch can also be clearly seen.

A break-action firearm is one whose barrels are hinged, and rotate perpendicular to the bore axis to expose the breech and allow loading and unloading of ammunition. A separate operation may be required for the cocking of a hammer to fire the new round. Break open actions are universal in double-barrelled shotguns, double-barrelled rifles and combination guns, and are also common in single shot rifles, pistols, and shotguns, and can also be found in flare guns, grenade launchers, air guns and some older revolver designs. They are also known as break-open, break-barrel, break top, or (on old revolvers) top-break actions.


A substantial hinge pin joins the two parts of the rifle or shotgun; the stock with its firing mechanism and the fore-piece and barrel, which hold the round to be fired. In some cases the hinging pin may be easily removable, allowing the two portions of the weapon to be compactly and safely stored. In other cases the hinge will consist of a hook over a pin; releasing an auxiliary latch will allow sufficient travel to allow the hinge to be unhooked.

A latch is operated to release the two parts of the weapon, allowing the breech to be exposed. A shell is inserted into the breech (up to two for a double barreled shotgun and six to eight for a revolver), and the mechanism is closed and latched. When the operator has pointed the weapon downrange the hammer is pulled back and latched. The weapon is now ready to fire, done by squeezing the trigger.

After firing the round(s), the break action is unlatched and the barrel and forearm are allowed to fall forward. This will cause an extractor catch to remove the spent shell, which is allowed to fall to the ground. The weapon is now ready for a new cycle.


The break open action is one of the strongest and most compact firearms actions. Since there are no parts to reciprocate, it is much shorter than a repeating firearm, and as built the break-open is generally more compact than other non-repeating firearms such as the falling block and rolling block actions. This compactness means reductions in weight and size, compared to larger actions; this can also allow a longer barrel in a firearm of equivalent size.

Since the cartridge extractor or ejector is built into the barrel assembly on break open actions, the breech face is simply a flat plate with a hole for the firing pin to project. This makes break open actions ideal for interchangeable barrel firearms, such as the popular Thompson Center Arms Contender and Encore pistols. The simplicity of the break open design, especially external hammer types, also reduces the cost of manufacture. There are a number of companies, such as H & R Firearms, producing break open rifles at far lower costs than comparable bolt action rifles.

Most firearms are designed for right-handed shooters. Break open action guns typically work the same when used from either shoulder.

Another advantage of the break open action is the ability to insert very long cartridges into the chamber. This allows cartridges of a length impractical in most other designs, as well as easy use of caliber conversion sleeves. It is common to find double barrel shotguns available with conversion sleeves for smaller gauges, allowing the same gun to be used with, for example, 12, 20, 28 gauge, and .410 bore shells.[1]


Question book-new.svg

This article does not contain any citations or references. Please improve this article by adding a reference. For information about how to add references, see Template:Citation.

The break open design is best suited for non-repeating firearms. To get multiple shots requires either multiple barrels or a revolver cylinder; while this is fairly simple for shotguns, with double-barreled shotguns quite common and even four-shot designs like the FAMARS Rombo available, double rifles require very precise alignment of the barrels so they shoot to the same point of aim. Modern double rifles are very expensive, and designed for short range use; the barrels are often regulated for ranges under 100 yards (91 m) for use against dangerous game.

Wear in the mechanism is focused upon the small contact area of the latch, and the breech is difficult to seal properly once the latch wears. In some firearms, such as the Thompson Center guns, the latch is a removable part that could be replaced when worn. Designs without a replaceable latch may be fixed by building up the worn part with a welder, then filing back to shape.

Break-open actions are also not as inherently strong as other action types, rendering them capable of withstanding only relatively low pressures. The action is usually held closed by a single locking lug, usually below the barrel in a single shot or between the barrels of a double barreled gun. The single lug must carry all of the force of firing the cartridge. For shotguns, which operate at very low pressures, this is not an issue.

Some centerfire rifle cartridges, however, can generate pressures that may be too great for a single locking lug, if it is not stout enough. The Thompson Center Contender, for example, was limited to .30-30 Winchester level cartridges. To fire more powerful cartridges requires a much larger locking lug, such as that which Thomson Center used on the larger Encore model. By comparison, while bolt-action shotguns may only use a single locking lug, almost all bolt-action rifles use multiple locking lugs around the perimeter of the bolt to provide an even distribution of the forces of firing, giving a much higher intrinsic strength. Since many break open rifles, such as the inexpensive H&R models, are built on large frames originally meant for shotguns, the action is very heavily built and capable of handling moderate to high pressures. Still, belted magnum cartridges such as .300 Winchester Magnum are generally only found in the highest quality, very expensive break action rifles.

Break open designs work best with rimmed cartridges, which can use a solid extractor. Rimless cartridges require a spring-loaded extractor, which can slide out of the way for cartridge insertion, and spring back to engage the recessed rim. While these spring-loaded extractors are found on even inexpensive models, the spring-loaded extractor is not as strong as a solid extractor, and increases the likelihood that failures to extract will occur.
